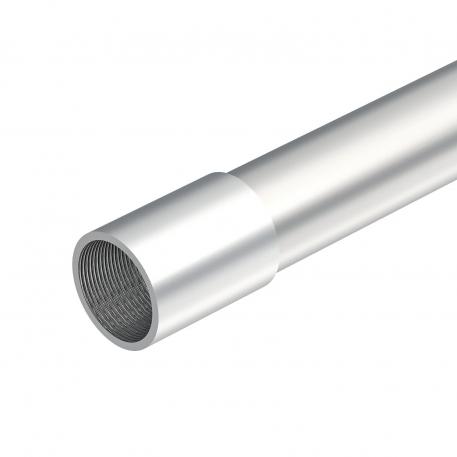

Aluminium buis, met schroefdraad
Art.nr. 2046033 | EAN 4012195926108
- Productbeschrijving
-
Productbeschrijving
Elektro-installatiebuis conform NEN-EN-IEC 61386-1, met schroefdraaduiteinden conform NEN-EN-IEC 60423, voor de mechanische bescherming van kabels en leidingen.

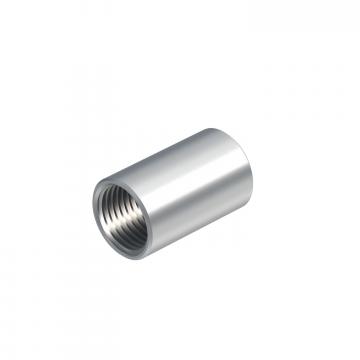

Met braamvrije binnenwand. Per buis is al een verbindingsmof opgeschroefd.
-
- Technische gegevens
-
Technische gegevens
Aansluiting 1 installatiebuis Mof Aansluiting 2 installatiebuis Buitendraad (metrisch) Betoninstallatie ja Classificatiecode 55561 Dimensie M20x1,5,3000 Hollewandinstallatie ja Inbouw ja Installatie ondergronds ja Installatie op hout ja Machines en intallatie ja Materiaal aluminium Montage in de open lucht ja Ondervloerinstallatie (afwerkvloer) ja Ondervloerinstallatie (bitumen, heet asfalt) ja Opbouw ja Oppervlak geborsteld nee Oppervlak gepolijst nee Schroefdraad M20x1,5 Temperatuurbereik max. 250 °C Temperatuurbereik min. -45 °C Uitvoering buizen Star met schroefdraad Afmetingen
Afmeting m (mm) M20 Lengte 3000 mm Maat D 20 mm Maat l 15 mm Maat L 3000 mm Maat t 1,9 mm - Alle typen
-
Alle typen
- Downloads
-
Specificatieblad SM20W ALU / 2046033 , 0.27MB , pdfConformiteitsverklaring SM20W ALU / 2046033 , 0.06MB , pdfREACH Conformiteitsverklaring SM20W ALU / 2046033 , 0.12MB , pdfRoHS Conformiteitsverklaring SM20W ALU / 2046033 , 0.12MB , pdf
